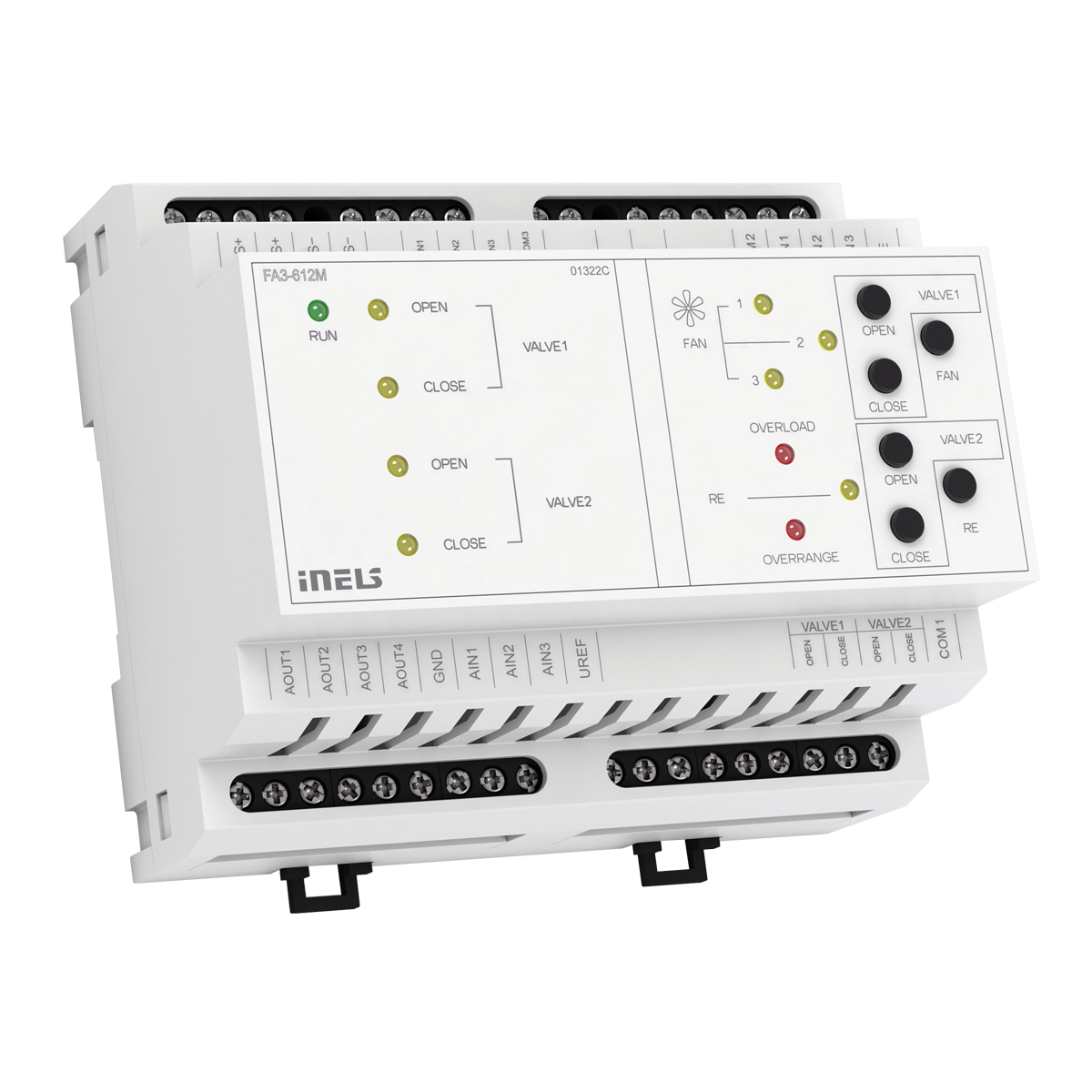

Fan Coil Control Actuator FA3-612M

DESCRIPTION

• FA3-612M is a unit (actuator) designed to control fan coil units using analogue/digital inputs and analog/relay outputs.
•  Analog inputs for temperature, voltage or current measurement (URef reference voltage can also be used).
•  The digital inputs are galvanically isolated with positive logic (Sink) in the 24-230 V AC/DC voltage range.
•  Analog outputs 0-10 V.
•  Connection to the installation BUS.
•  Buttons for closing/opening the valve, fan and heating relay.
•  The LEDs on the front panel indicate FAN, RE, VALVE1, VALVE2, OVERRANGE, and OVERLOAD status.
•  FA3-612M in 6-MODULE version is designed for mounting into a switchboard, o EAN code n DIN rail EN60715.

TECHNICAL PARAMETERS

• Output: 4x (0)-10V, 4x switching, 4x SSR
• Input: 3x analog, 3x digital
• Supply voltage: BUS 27 V DC
• Rated current from BUS: 5 mA (at 27 V DC)
• Housing: 6-MODULE
• Dimensions: 90 x 105 x 65 mm
