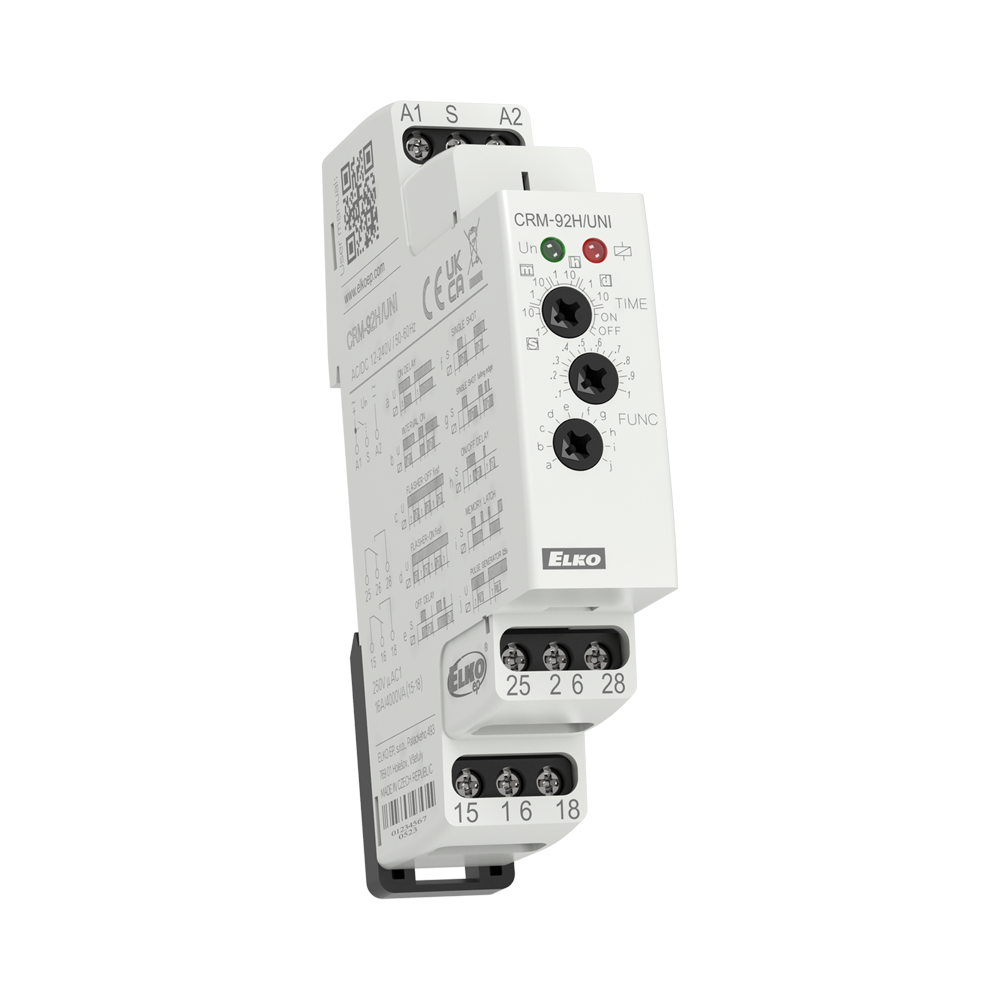

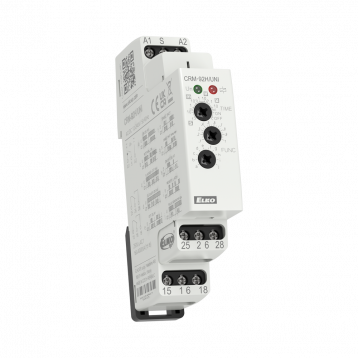

Multifunction time relays CRM-92H

DESCRIPTION

• Multifunction time relay for universal use in automation, control and regulation or in-house installations.
• Comfortable and well-arranged function and time-range setting by rotary switches.
• Multifunction red LED fl ashes or shines depending on the operating status.

Technical parameters

• Supply terminals: A1 - A2
• Number of functions: 10
• Number of contacts 1: 1x changeover / SPDT (AgNi) / 16A
• Number of contacts 2 (3): 1xchangover/SPDT(AgNi) / 16A
• Max. power dissipation: 2.4 W
• Mounting: DIN rail EN 60715
• Protection degree: IP40 from front panel / IP20 terminals


Downloads

• Datasheet CRM-91H 92H 93H

  Format: pdf | Size : 540 kB | 11. 06. 2024

• EC Declaration of conformity CRM-92H UNI

  Format: PDF | Size : 313 kB | 23. 03. 2021
